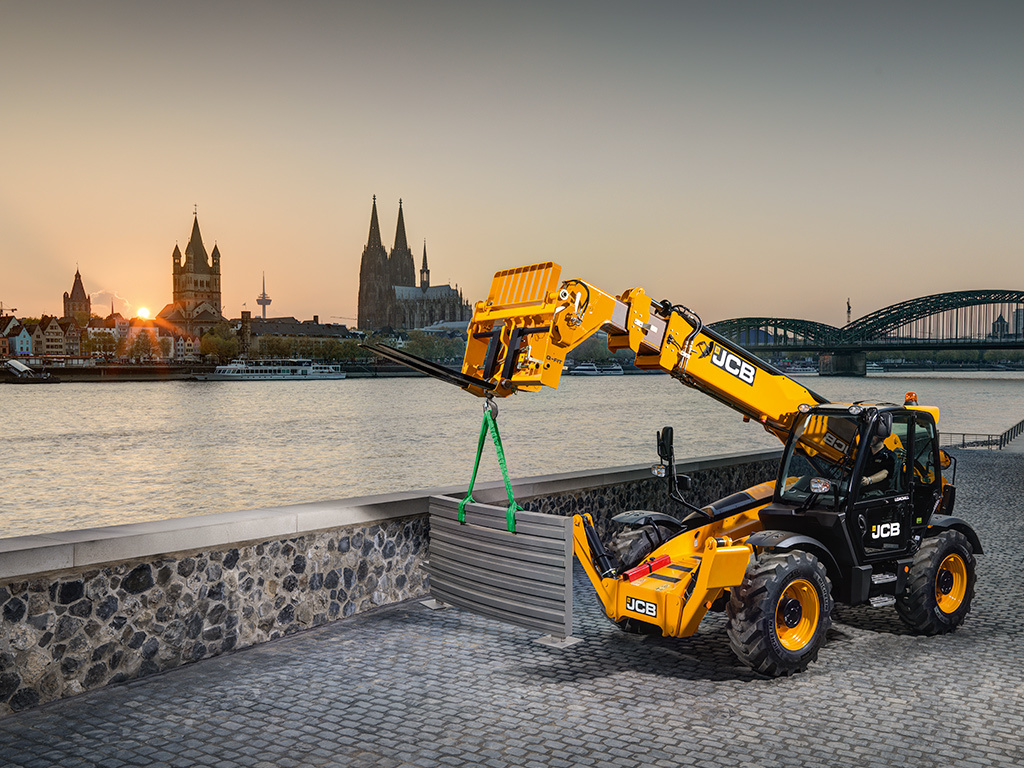

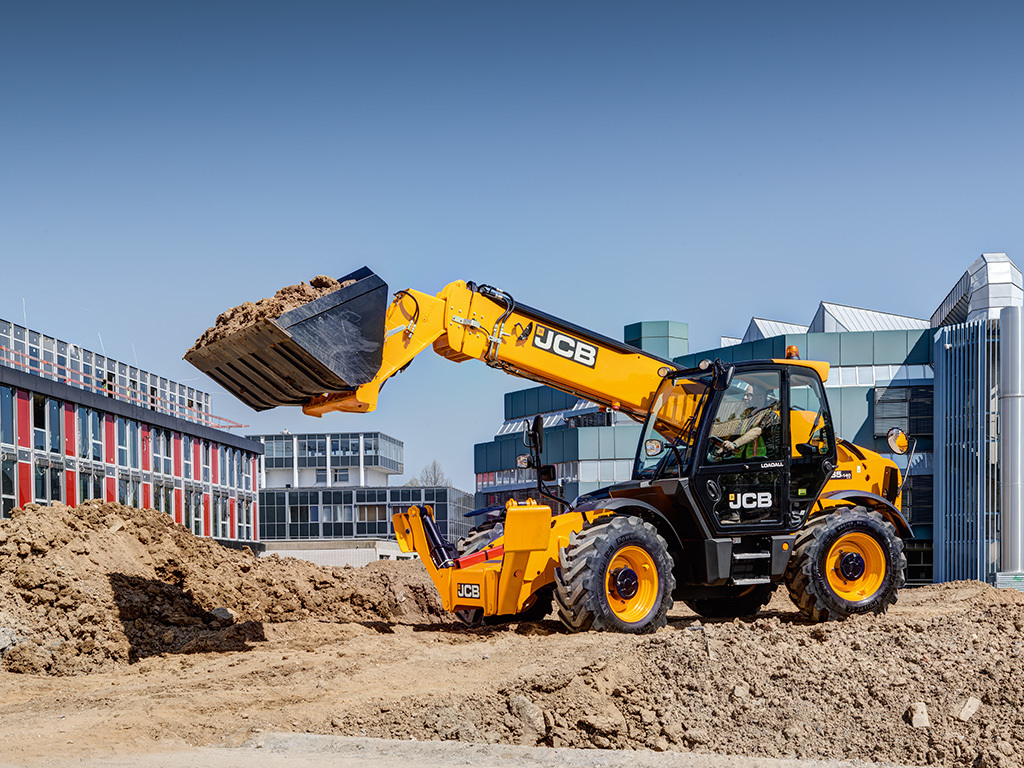

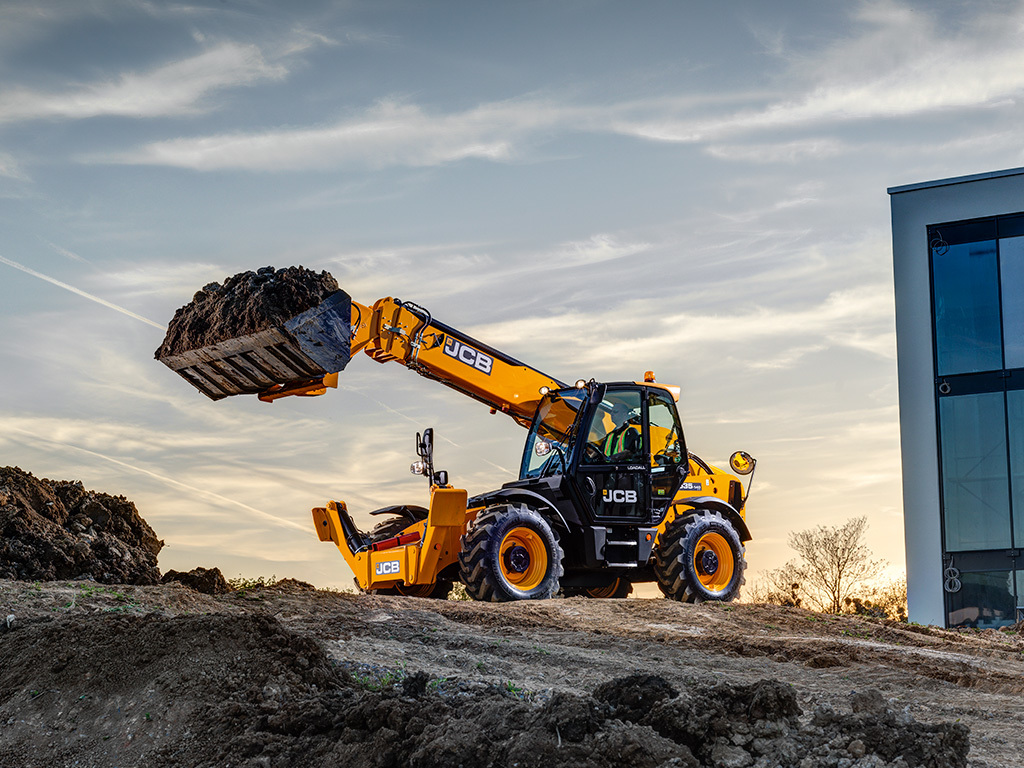

JCB 509-45TC
Telehandlers
How can we help?
(229) 388-8120
Features
-
31ft 6in (9.6m) max forward reach (stabilized)
-
12ft 1in (3.75m) outer turn radius over tires
-
43ft 8in (13.3m) placing height (stabilised)
-
Low-effort 'Plus' pattern hydraulic controls
-
STRENGTH AND DURABILITY: Heavy-duty axle feet help the JCB 540-140 HiViz Construction telescopic handler to absorb the immense stresses generated during continuous heavy material rehandling applications, while a one-piece, fully welded chassis maximizes strength and minimizes weight. There’s a tough U-shaped boom pressing with fully welded closing plates. For extra strength, there are large boom overlaps of up to 1.0m; we’ve also reduced joints and stress points across our integrated boom nose and one-piece closing plate. To provide long-term corrosion protection, we dip JCB Construction telescopic handler cabs in electrophoretic ally prior to painting. Keyhole castings hold the tilt and extension rams in place to further improve overall structural integrity. Hydraulic hoses are intelligently routed through the boom for maximum protection; the hood is side-mounted, which protects it from site damage; and rear lights fold up to keep them clear and well protected from damage when working on site. The boom on a JCB 540-140 HiViz Construction Loadall telehandler is mounted low in the chassis, providing an extremely rigid structure and maximum over-the-shoulder visibility. The new Construction telescopic handler range’s stringent testing program has included prolonged high stress loading of the chassis, boom and other key components, as well as repeated transmission use of thousands of cycles. Optional front and sunroof guards offer additional protection from falling debris.
-
110 l/min max hydraulic flow
-
WORKING ENVIRONMENT: The cab is one of the largest on the market and boasts the most effective noise reduction in its class, but with excellent air flow, ventilation and demisting. Air conditioning is available. The telehandler features a fully adjustable steering column and optional suspension seat. The exterior top door slam latch allows the upper door to be closed from outside. The standard-fit tinted cab glass reflects 30 percent of the sun’s energy for enhanced operator comfort.
-
31ft 6in (9.6m) max reach with a 1000 kg load (stabilized)
-

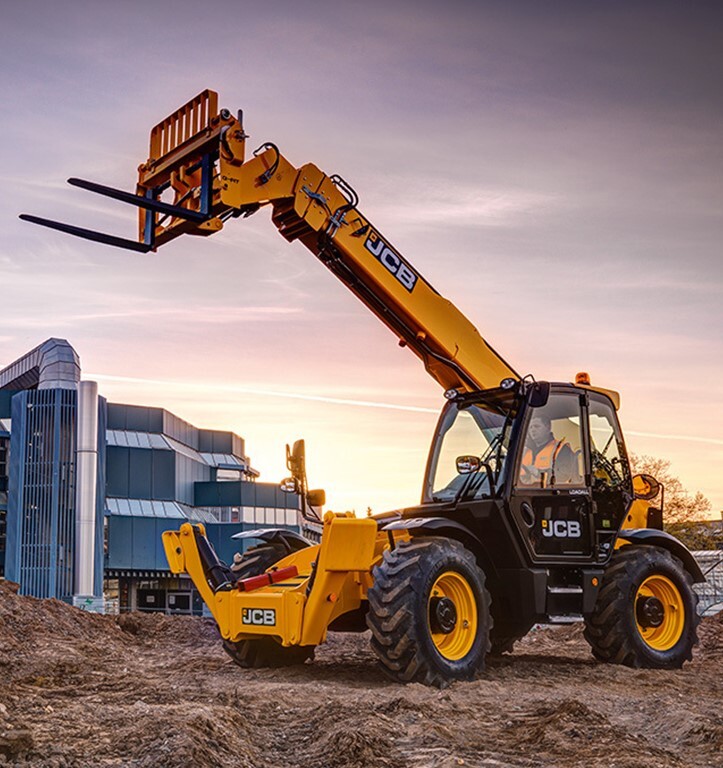

VISIBILITY: The boom on the JCB 509-45TC sits low in the chassis for superior visibility all around the machine. Optional camera systems are available for additional visibility around the telehandler, and an optional pulse radar alerts the operator as the rear of the machine approaches an object.
Specifications
Maximum Engine Power: |
109 hp 81 kW |
Maximum Lift Capacity: |
8,800 lbs 4,000 kg |
Maximum Lift Height: |
45 ft 13.8 m |
