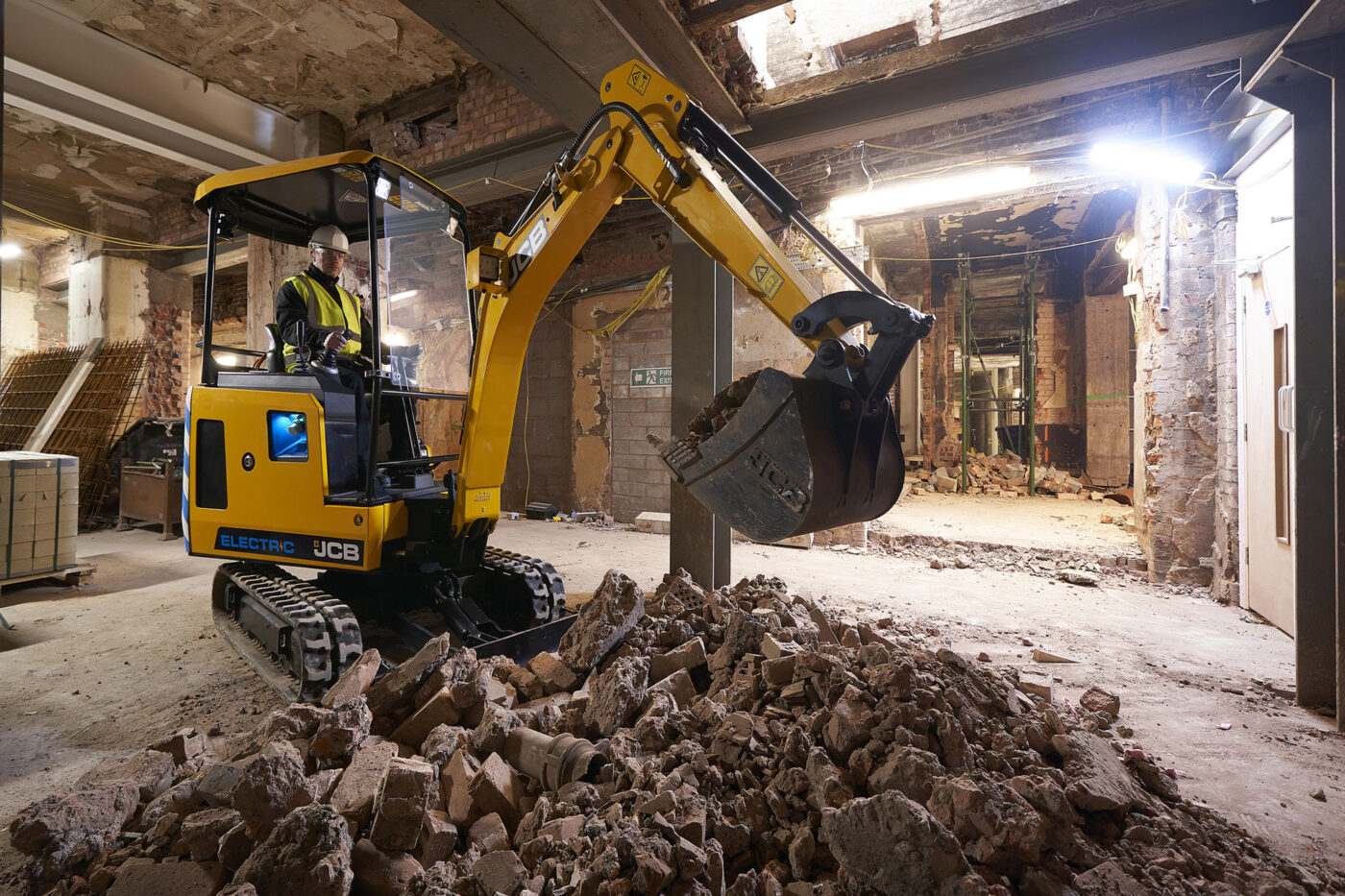

19C-1E ELECTRIC MINI EXCAVATOR
JCB is leading the way in clean technology and reducing harmful emissions with the JCB E-TECH, a new generation of electric products with zero exhaust emissions, greatly reduced noise and no compromise on performance.

Features

  • Bosch Rexroth load-sensing hydraulic system for excellent digging performance to a maximum dig depth of 9 feet 3 inches (2.82 meters).

  • Bucket tear-out of 4,046 lbf (18 kN)

  • CHOOSE ECONOMICAL: The JCB 19C-1E electric mini excavator requires minimal daily checks and less servicing than conventional, diesel-powered machines. • Maintenance-free batteries in rugged battery housing to withstand construction applications. • Lower operating costs as electricity is less expensive than fossil fuel. • No engine (or associated components and consumables), which significantly reduces daily checks, servicing time and equipment. • No need for expensive emissions extraction equipment when working indoors or in tunnels.

  • 48-volt electric driveline generating peak power up to 27 hp (20 kW)

  • CHOOSE SAFE: The JCB 19C-1E electric mini excavator is safer for the environment, operators and bystanders, and is ideal for working indoors and in urban areas. • The 19C-1E operates completely free of electrical tethers. • Zero emissions and low noise levels make for safer working conditions. • JCB’s unique 2GO system safely isolates all the controls. • The canopy is ROPS, TOPS and FOGS certified for full safety compliance.

  • Twin flow auxiliary circuit 8 gpm (32 l/min)

  • CHOOSE QUIET: The JCB 19C-1E electric mini excavator generates less noise than many household appliances, making it ideal for urban areas and indoor applications and allowing better communication with co-workers. • Noise at the operator station is just 68 dB • Three single-?anged bottom rollers allied with short pitch tracks ensure a quiet, smooth ride. • In some circumstances, the lower machine noise may enable use outside of typical operating hours to maximize time on site and complete projects sooner • A blue indicator light shows the machine is running.

  • CHOOSE A FULL DAY'S WORK: The JCB 19C-1E electric mini excavator provides the freedom to work anywhere, anytime with quick charging and long battery life. • The standard three-battery pack provides 313 Ah (15 kWh) of capacity, which will provide a typical day’s work on a single charge. • Optional four-battery pack allows 417 Ah (20 kWh) capacity and delivers two additional hours of continuous use. • Up to 120 hours standby time. • Battery status information available via a gauge on the instrument panel. • Three charging options, with one to suit every work site and operating profile. Standard 110V input for 12-hour recharging. Available 230V charging option for 8-hour recharge or fast charge option for 2-hour recharge.

  • On-board charger with standard, domestic 110V input for 12-hour recharging. Available 230V charging option for 8-hour recharge or fast charge option for 2-hour recharge.

  • 500-hour greasing intervals (dig end and dozer)

  • Retractable tracks to move through narrow entrances

  • CHOOSE TOUGH: The new JCB 19C-1E electric mini excavator is designed and built to withstand the toughest job sites, with durable components for minimal downtime. • 100 percent steel bodywork for maximum protection and easy repair. • The electrical circuit has been extensively tested and every detail checked to ensure longevity. • A full-width, rear cast counterweight protects against damage. • Extending undercarriage beams are constructed from 1-inch solid steel plate. • Even after 3,000 full charge and discharge cycles (equivalent of more than 10 years of use), the batteries retain more than 80 percent capacity.

  • Three lithium-ion batteries creating 313 Ah (15 kWh) of capacity, enough to power through a typical workday on a single charge. An optional four-battery pack increases capacity to 417 Ah (20 kWh) and delivers an additional two hours of continuous use.

Specifications

null:
Max. Dig Depth:
9 ft 3 in
2.82 m
Operating Weight:
4,193 lb
1,902 kg
  • Features

    Features

    • Bosch Rexroth load-sensing hydraulic system for excellent digging performance to a maximum dig depth of 9 feet 3 inches (2.82 meters).

    • Bucket tear-out of 4,046 lbf (18 kN)

    • CHOOSE ECONOMICAL: The JCB 19C-1E electric mini excavator requires minimal daily checks and less servicing than conventional, diesel-powered machines. • Maintenance-free batteries in rugged battery housing to withstand construction applications. • Lower operating costs as electricity is less expensive than fossil fuel. • No engine (or associated components and consumables), which significantly reduces daily checks, servicing time and equipment. • No need for expensive emissions extraction equipment when working indoors or in tunnels.

    • 48-volt electric driveline generating peak power up to 27 hp (20 kW)

    • CHOOSE SAFE: The JCB 19C-1E electric mini excavator is safer for the environment, operators and bystanders, and is ideal for working indoors and in urban areas. • The 19C-1E operates completely free of electrical tethers. • Zero emissions and low noise levels make for safer working conditions. • JCB’s unique 2GO system safely isolates all the controls. • The canopy is ROPS, TOPS and FOGS certified for full safety compliance.

    • Twin flow auxiliary circuit 8 gpm (32 l/min)

    • CHOOSE QUIET: The JCB 19C-1E electric mini excavator generates less noise than many household appliances, making it ideal for urban areas and indoor applications and allowing better communication with co-workers. • Noise at the operator station is just 68 dB • Three single-?anged bottom rollers allied with short pitch tracks ensure a quiet, smooth ride. • In some circumstances, the lower machine noise may enable use outside of typical operating hours to maximize time on site and complete projects sooner • A blue indicator light shows the machine is running.

    • CHOOSE A FULL DAY'S WORK: The JCB 19C-1E electric mini excavator provides the freedom to work anywhere, anytime with quick charging and long battery life. • The standard three-battery pack provides 313 Ah (15 kWh) of capacity, which will provide a typical day’s work on a single charge. • Optional four-battery pack allows 417 Ah (20 kWh) capacity and delivers two additional hours of continuous use. • Up to 120 hours standby time. • Battery status information available via a gauge on the instrument panel. • Three charging options, with one to suit every work site and operating profile. Standard 110V input for 12-hour recharging. Available 230V charging option for 8-hour recharge or fast charge option for 2-hour recharge.

    • On-board charger with standard, domestic 110V input for 12-hour recharging. Available 230V charging option for 8-hour recharge or fast charge option for 2-hour recharge.

    • 500-hour greasing intervals (dig end and dozer)

    • Retractable tracks to move through narrow entrances

    • CHOOSE TOUGH: The new JCB 19C-1E electric mini excavator is designed and built to withstand the toughest job sites, with durable components for minimal downtime. • 100 percent steel bodywork for maximum protection and easy repair. • The electrical circuit has been extensively tested and every detail checked to ensure longevity. • A full-width, rear cast counterweight protects against damage. • Extending undercarriage beams are constructed from 1-inch solid steel plate. • Even after 3,000 full charge and discharge cycles (equivalent of more than 10 years of use), the batteries retain more than 80 percent capacity.

    • Three lithium-ion batteries creating 313 Ah (15 kWh) of capacity, enough to power through a typical workday on a single charge. An optional four-battery pack increases capacity to 417 Ah (20 kWh) and delivers an additional two hours of continuous use.

  • Specifications

    Specifications

    null:
    Max. Dig Depth:
    9 ft 3 in
    2.82 m
    Operating Weight:
    4,193 lb
    1,902 kg
