Description

Specifications

• Engine Power: 132 hp
• Ground Pressure: 4.4 psi
• Operating Weight: 11265 lbs
• Rated Operating Capacity: 5050 lbs

Features

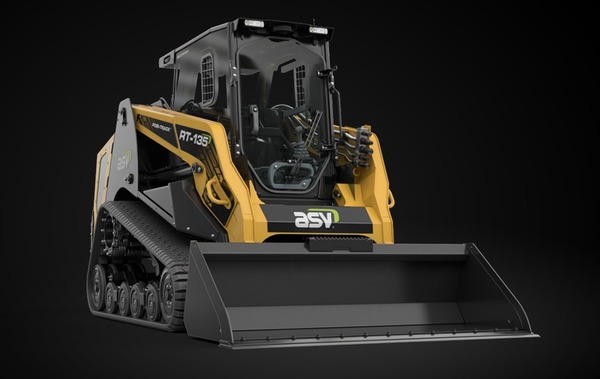

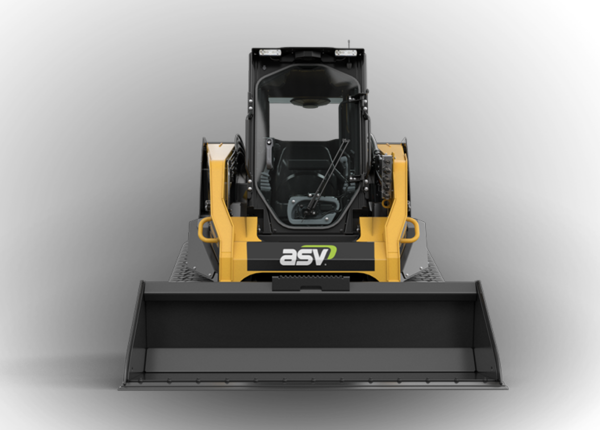

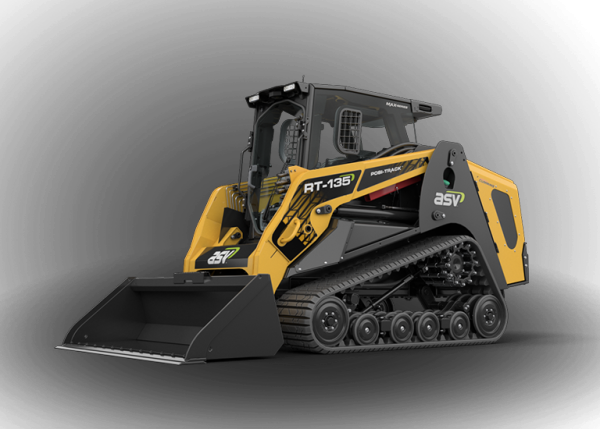

• A, turbocharged Cummins 3.8 liter diesel engine powers the RT-135. This 132-horsepower engine produces 360 foot-pounds of torque, which is transferred to the terrain through direct-drive hydraulic motors, allowing the machine to easily move through its path.

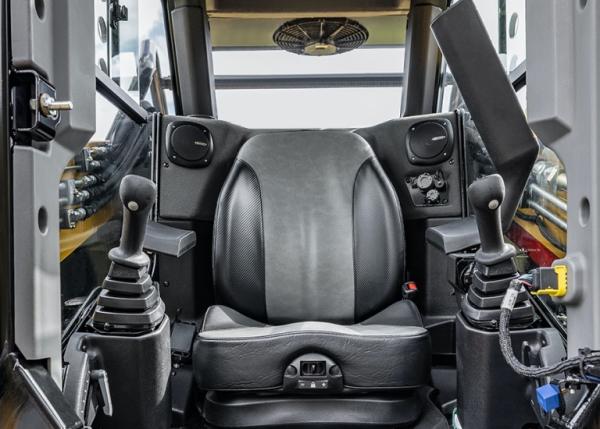

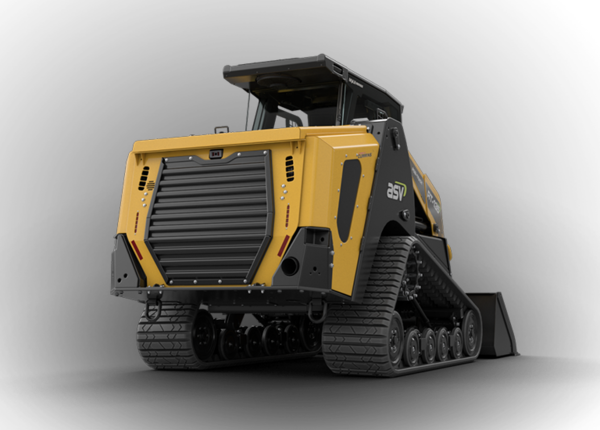

• The RT-135 gives operators easy access to the Cummins engine through a three-panel hood and tilting cooler arrangement. This machine offers a hydraulic quick attach and a design that simplifies routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required.
• ASV designed this machine to give operators easy access to the reliable Cummins engine through a three-panel hood and tilting cooler arrangement. The design, paired with sight gauges for both hydraulic oil and coolant, simplify routine inspections of filters, oil and normal service items. The rearward tilting cab and hinged bellypans provide easy accessibility when further service is required.
• The RT-135 achieves superior performance over competitive machines. The unit features a rated operating capacity of 3,535 lbs. and a tipping load of 10,100 lbs. It features ASV’s patented Posi-Track® rubber-track suspension—well known for its smooth ride—and includes both suspended wheels and axles, allowing it to achieve faster speeds over all types of terrain. The fully-flexible track and suspended wheels conform to the ground, ensuring maximum traction in the roughest conditions. The MAX-Series features, combined with the RT-135’s 15 inches of ground clearance, allow the unit to work in more places, on more days and more comfortably than competitive machines.
